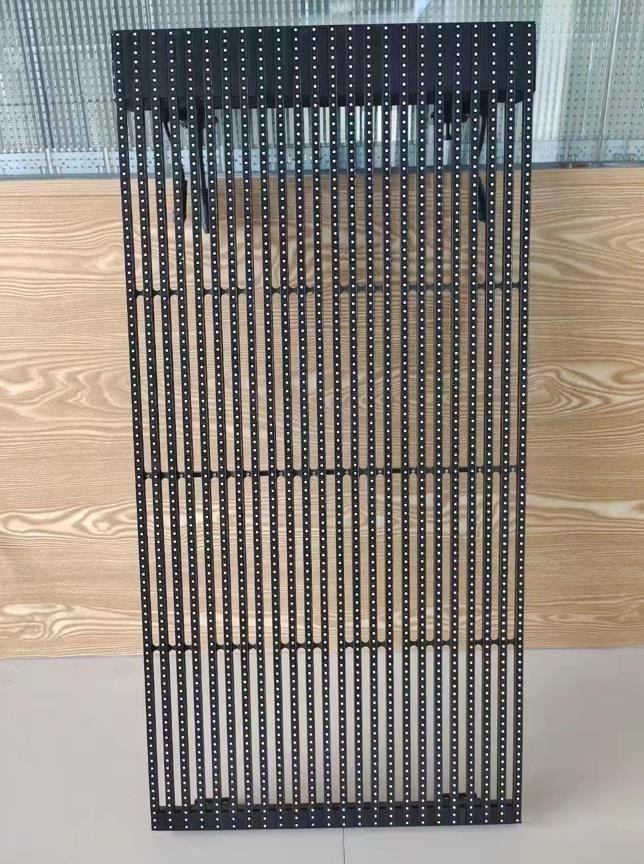

Advantages of LED Curtain Display:
1. Ultra light weight and slim
15-20kg/sqm, and slim body for outdoor fixed installation
2. Lower Power Consumption
Only 50% power consumption comparing to conventional displays
Special LED selected and high efficiency power supply selected
3. High Protection Level
IP67 for whole screen, complete waterproof for various weather
conditions
Screen life time is increased significantly
4. Exceptionally Lightweight and Slim
10-18 kg/m2 gross weight
Easy to install and save installation space
5. Fast Installation and Easy Maintenance
Both front and rear accessible for maintenance
Steel frame is canceled during installation
6. High Transparency and High Brightness

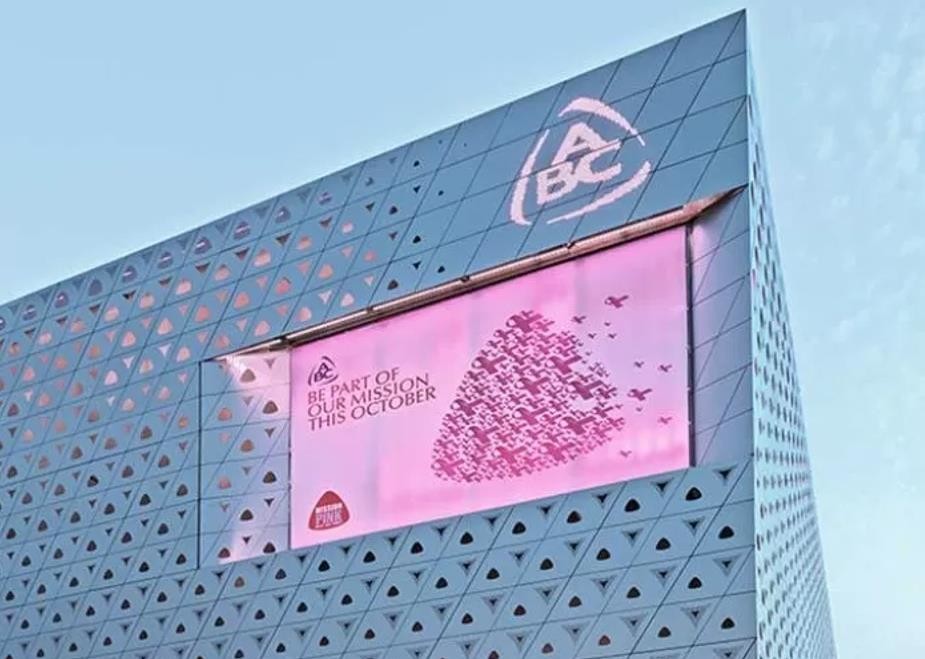

20-80% transparency rate, see through, suitable for glass wall
mounting
6000-11000 nits brightness, for all outdoor environment vivid
colors
| Physical Pitch | 15.625 mm | W31.25mm*H15.62mm |
| LED Lamp | DIP346 | DIP346 |
| Pixel Density | 4096 pixels/m² | 2048 pixels/m² |
| Cabinet Dimensions (mm) | 500*1000 | 500*1000 |
| Cabinet Resolution | 32*64 | 16*64 |
| Panel Material | Aluminum | Aluminum |
| Weight | 9kg/panel | 7.5 kg/panel |
| Average Power Consumption | 200 W/m² | 200 W/m² |
| Max Power Consumption | 400 W/m² | 400 W/m² |
| Refresh Rate | 1920/3840 Hz | 1920/3840 Hz |
| Brightness | 8000 nits | 6000 nits |
| Transparency | 36% | 50% |
| IP Rating | IP65 | IP65 |
| Scan Method | Static Scanning | Static Scanning |
| Working Temperature | -20~60℃ | -20~60℃ |
| Working Humidity | 10%-90%RH | 10%-90%RH |
| Life Span | ≥100000 Hours | ≥100000 Hours |
| Working Voltage | AC 110V/220V | AC 110V/220V |
About Us:
SHENZHEN ELITELED ELECTRONICS CO., LTD. is a leading LED display
applications products and solutions provider, specialized in LED
research and development, manufacturing. Sales and service,
dedicated to providing high-quality, high-performance LED
applications and solutions for professional channel customers and
end-users at home and abroad.
Our products have been widely used both at home and abroad. Since
its foundation, we have become one of the best LED product and
solution providers in the country through our unremitting efforts
and have won the industry's highest recognition
The development of the company so far, the sales outlets throughout
the country, the export products exported to more than 10 countries
and regions, 3C, FCC, CE, IP65, IP67, IS9001, ROHS, and other
qualifications, product testing reports, patent certificate.
FAQ:
Q1: What is the Warranty for LED?
A1: We have 2 years warranty.
Q2: How soon can I get samples for test to check quality?
A2: After price confirm,for our normal products(not customized
products),we can send samples for you in 7 days. And our samples
usually not for free, after large order placed samples costs can be
refundable.
Q3: Can you accept OEM&ODM service business?
A3: Yes,we can. We can customized the products, labels, package as
your demands.
Q4: How to proceed an order for led light?
A4: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q5: What’s your payment terms?
A5:Standard terms: T/T in advance. Large amount: L/C at sight.
Small amount like sample fees: Paypal and Western Union.
Q6: What about delivery time?
A6: Within 7 days for the sample order, and 15-25 days for bulk
order.
Q7: How do you usually ship the goods?
A7: For small order, by express. For large order, if you need
urgently, by air, and also can by sea. We promise to find the most
economic and safe way to delivery the goods for you.
