Brand Name : | EliteLED |
Model Number : | Outdoor p10 |
Certification : | CE |
Price : | Negotiable |
Supply Ability : | 3000sqm/month |
Delivery Time : | 18 days |

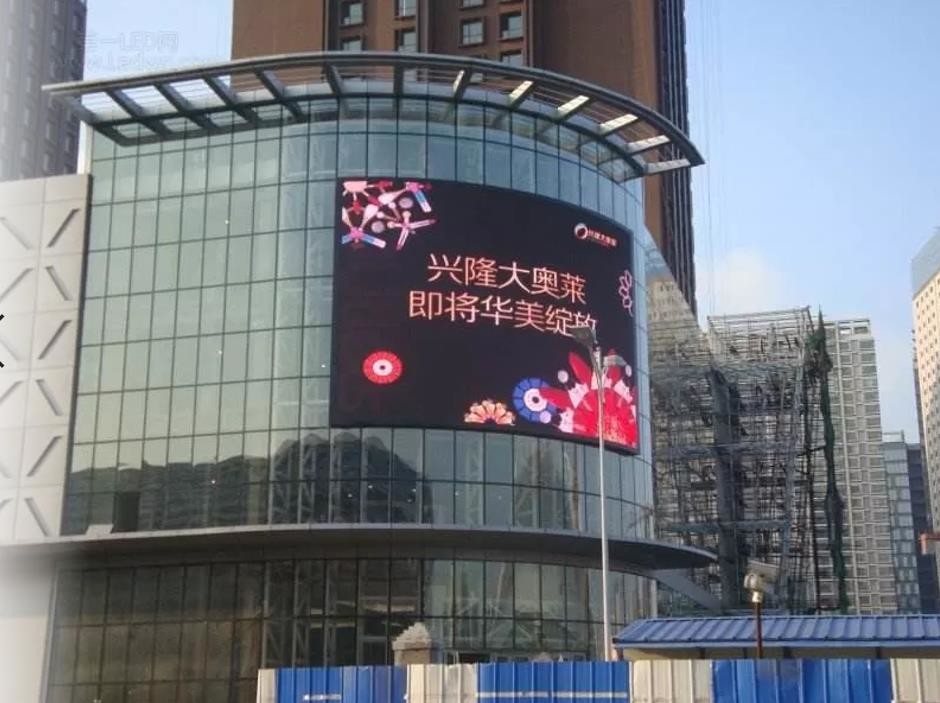

Energy Saving Outdoor P10 Fixed Led Display Wall Mounted 1mx1m Aluminum Cabinet
Specifictions:
1. Front access, slim aluminum cabinet, easy and fast to install and maintenance.
2. 2.8V&3.8V energy saving design, no need air-conditioner, environmental and save cost.
3. Support 90 degree installation, seamless splicing at the corner.
4. Totally warterproof of front and back, IP65.
5. Competitive price, you are welcome to contact us for a free project evaluation.
Model No. | P10.41 | P7.8 | P6.25 | P5.2 | P4.8 | P3.9 |
Pixel pitch | 10.4mm | 7.82mm | 6.25mm | 5.2mm | 4.81mm | 3.91mm |
Pixel density (dots/m2) | 9246 | 16352 | 25600 | 36982 | 43264 | 65536 |
LED encapsulation | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD1921 | SMD1921 |
Scan rate | 1/2 scan | 1/4 scan | 1/5 scan | 1/6 scan | 1/7 scan | 1/8 scan |
Module size | 500 x 250 mm | |||||
Module Resolution | 48 x 24 | 64 x 32 | 80 x 40 | 96 x 48 | 104 x 52 | 128 x 64 |
Cabinet size | 1000 x 1000 x 73mm (Optional) | |||||
Cabinet Resolution | 96 x 96 | 128 x 128 | 160 x 160 | 192 x 192 | 208 x 208 | 256 x 256 |
Weight per Cabinet | 24.5 kg | |||||
Brightness | ≥6500/ 10000nits | ≥6000/ 10000nits | ≥6000/ 10000nits | ≥5500/ 10000nits | ≥5000/ 10000nits | ≥5000/ 10000nits |
Max.power consumption | 500W | 500W | 500W | 550W | 800W | 800W |
Ave.power consumption | 175W | 175W | 175W | 185W | 270W | 270W |
Energy Saving design | 2.8V & 3.8V Low voltage | 4.6V / 5V voltage | ||||
Protection Degree | Front IP67/Rear IP65 | |||||
Service | Front & Rear Dual service | |||||
Power Supply | AC120 /240V (50Hz) (optional) | |||||
Refresh Rate | ≥ 1920Hz(3840Hz Optional) |
Products Features:
1. Wide application field & short ROI time:
Commercial advertising LED display screen, Stadium perimeter LED
display screen, Mobile trailer LED display screen for mobile media,
shopping mall LED display screen for logo showing, bank&stock
exchange LED display screen for rates showing, train & bus station
LED display screen, air port LED display screen, telecommunication
LED display screen system for information showing and instruction
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED
display screen system.
3. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more
audience to get short ROI of your LED display screen's investment.
4. Long-term Brightness:
7000-nit brightness (for outdoor full color)(2000 nits brightness
for indoor full color ) capacity throughout product lifetime of the
LED display screen.
5. Easy Installation & Using:
Easy & simple installation interface and user friendly software to
ensure the user friendly interface of the LED display screen system
6. Convenient Servicing:
Front and rear cabinet access makes the maintenance work very
convenient and low cost to help you concentrate more time and
energy on your main marketing promotion business.
After-sale Service:
1. Warranty is for 2 years: During the warranty period, we will maintain and replace the defect components for free if there is any quality problem due to us. After 2 years, we will charge the material and freight cost.
2. Free Training: You can send your engineers to our factory for free of charge training, which includes the software, operation, installation, adjustment, basic repairing, etc.
3. Technical Support: All operation manuals, software, CAD drawings of the steel structure and instruction of installing the cabinets can be provided for free. Online technical support by remote control is also available. If needed, we can send engineers to your country to instruct and help the installation.
4. If you need, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such hotel, food, round trip ticket.
![]() |
