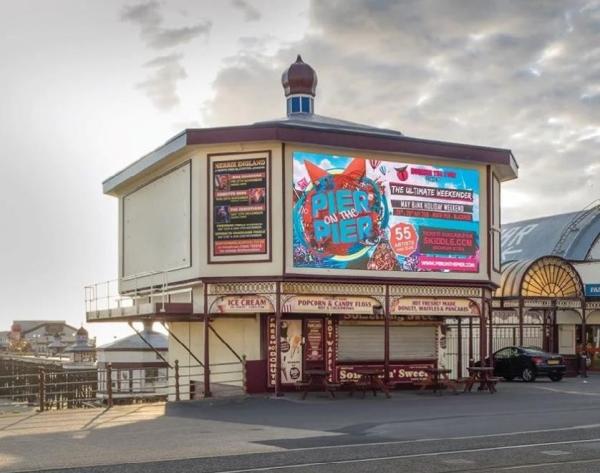

Front Access P3.91 P4.81 Outdoor Led Screen Paper Wall Mounted
Aluminum Panel
Specifictions:
1. Front access, slim aluminum cabinet, easy and fast to install
and maintenance.
2. 2.8V&3.8V energy saving design, no need air-conditioner,
environmental and save cost.
3. Very simple steel structure, wall mounted installation, support
seamless splicing at 90 degree corner.
4. Totally warterproof of front and back, certification:CE, FCC,
IP65
5. Competitive price, you are welcome to contact us for a free project evaluation.
| Model No. | P10.41 | P7.8 | P6.25 | P5.2 | P4.8 | P3.9 |
| Pixel pitch | 10.4mm | 7.82mm | 6.25mm | 5.2mm | 4.81mm | 3.91mm |
Pixel density
(dots/m2) | 9246 | 16352 | 25600 | 36982 | 43264 | 65536 |
| LED encapsulation | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD1921 | SMD1921 |
| Scan rate | 1/2 scan | 1/4 scan | 1/5 scan | 1/6 scan | 1/7 scan | 1/8 scan |
| Module size | 500 x 250 mm |
| Module Resolution | 48 x 24 | 64 x 32 | 80 x 40 | 96 x 48 | 104 x 52 | 128 x 64 |
| Cabinet size | 1000 x 1000 x 73mm (Optional) |
| Cabinet Resolution | 96 x 96 | 128 x 128 | 160 x 160 | 192 x 192 | 208 x 208 | 256 x 256 |
| Weight per Cabinet | 24.5 kg |
| Brightness | ≥6500/
10000nits | ≥6000/
10000nits | ≥6000/
10000nits | ≥5500/ | ≥5000/ | ≥5000/ |
| Max.power consumption | 500W | 500W | 500W | 550W | 800W | 800W |
| Ave.power consumption | 175W | 175W | 175W | 185W | 270W | 270W |
| Energy Saving design | 2.8V & 3.8V Low voltage | 4.6V / 5V voltage |
| Protection Degree | Front IP67/Rear IP65 |
| Service | Front & Rear Dual service |
| Power Supply | AC120 /240V (50Hz) (optional) |
| Refresh Rate | ≥ 1920Hz(3840Hz Optional) |
About Us:
Shenzhen Eliteled Electronics Co. Limited is a full range
manufacturer and LED display solutions provider and its ancillary
systems worldwide since 2009, headquartered in Shenzhen with a 6,
000m² production state of the art facility to cover international
demands. We provide a one-stop shopping in the design, production,
and distributions of LED displays and solutions for our customers
domestically and globally.
Our products include ranges of indoor, outdoor, fixed, rental and
creative LED Solutions for various applications including sports,
advertisement, concerts, shopping malls, stadiums, exhibitions or
any other indoor and outdoor events that comes to your imagination.
After-sale Service:
1. Telephone investigation: Our after-sales team will phone the
user every month during the warranty period to follow up the
working condition of the products, and to discover and solve
problems, if necessary.
2. Free guarantee repair (including labor and material); free
repair service during the quality warranty period and reasonable
charge for spare parts and maintaining service after the quality
warranty period. We will never exempt our responsibilities on
product owned defects.
3. Responding time: Upon receiving user’s notification, we ensure
24-hour after-sales technical support.
4. Spare parts: Necessary spare parts are provided together with
products to customers.
5. Free technical training: Integrative and normative technology
training is available for free to customers by our technical
personnel to ensure they are skilled in regular operations of
hardware and software of products and they are able to estimate and
solve small problems.
6. Software upgrade: Lifelong maintenance of controlling system,
incessant improvement of the system functions and continuous
software upgrades.
