Front Access P3.91 P4.81 Outdoor Fixed Led Display Wall Mounted
Aluminum Panel
Specifictions:
1. Front access, slim aluminum cabinet, easy and fast to install
and maintenance.
2. 2.8V&3.8V energy saving design, no need air-conditioner,
environmental and save cost.

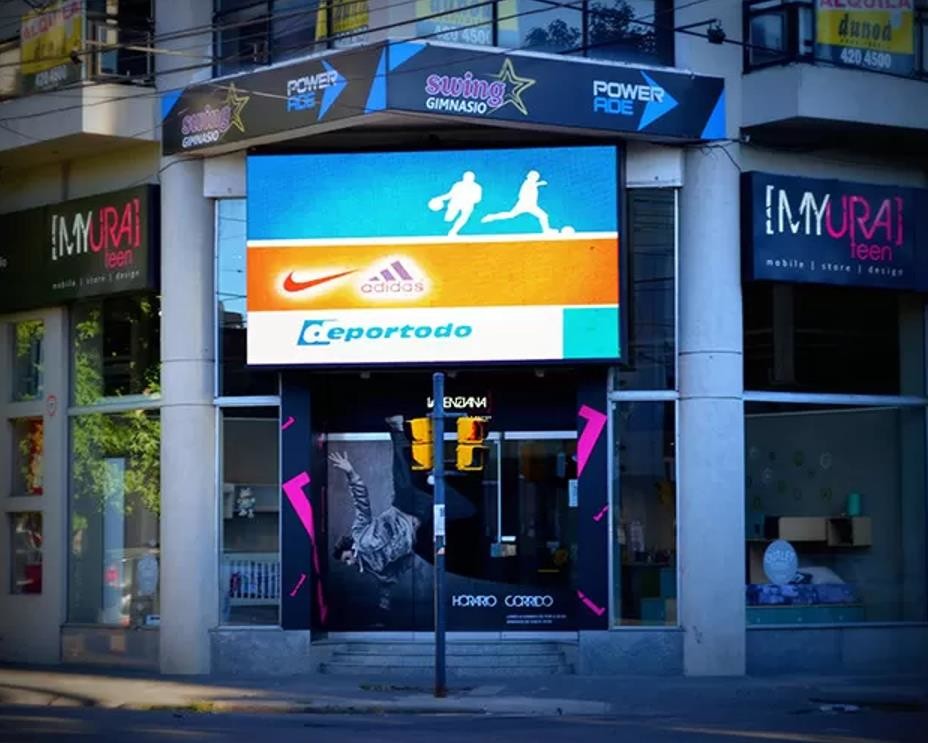

3. Very simple steel structure, wall mounted installation, support
seamless splicing at 90 degree corner.
4. Totally warterproof of front and back, certification:CE, FCC,
IP65
5. Competitive price, you are welcome to contact us for a free project evaluation.
| Model No. | P10.41 | P7.8 | P6.25 | P5.2 | P4.8 | P3.9 |
| Pixel pitch | 10.4mm | 7.82mm | 6.25mm | 5.2mm | 4.81mm | 3.91mm |
Pixel density
(dots/m2) | 9246 | 16352 | 25600 | 36982 | 43264 | 65536 |
| LED encapsulation | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD1921 | SMD1921 |
| Scan rate | 1/2 scan | 1/4 scan | 1/5 scan | 1/6 scan | 1/7 scan | 1/8 scan |
| Module size | 500 x 250 mm |
| Module Resolution | 48 x 24 | 64 x 32 | 80 x 40 | 96 x 48 | 104 x 52 | 128 x 64 |
| Cabinet size | 1000 x 1000 x 73mm (Optional) |
| Cabinet Resolution | 96 x 96 | 128 x 128 | 160 x 160 | 192 x 192 | 208 x 208 | 256 x 256 |
| Weight per Cabinet | 24.5 kg |
| Brightness | ≥6500/
10000nits | ≥6000/
10000nits | ≥6000/
10000nits | ≥5500/ | ≥5000/ | ≥5000/ |
| Max.power consumption | 500W | 500W | 500W | 550W | 800W | 800W |
| Ave.power consumption | 175W | 175W | 175W | 185W | 270W | 270W |
| Energy Saving design | 2.8V & 3.8V Low voltage | 4.6V / 5V voltage |
| Protection Degree | Front IP67/Rear IP65 |
| Service | Front & Rear Dual service |
| Power Supply | AC120 /240V (50Hz) (optional) |
| Refresh Rate | ≥ 1920Hz(3840Hz Optional) |
About Us:
Shenzhen Eliteled Electronics Co. Limited is a full range
manufacturer and LED display solutions provider and its ancillary
systems worldwide since 2009, headquartered in Shenzhen with a 6,
000m² production state of the art facility to cover international
demands. We provide a one-stop shopping in the design, production,
and distributions of LED displays and solutions for our customers
domestically and globally.
Our products include ranges of indoor, outdoor, fixed, rental and
creative LED Solutions for various applications including sports,
advertisement, concerts, shopping malls, stadiums, exhibitions or
any other indoor and outdoor events that comes to your imagination.
After-sale Service:
1. Warranty is for 2 years: During the warranty period, we will
maintain and replace the defect components for free if there is any
quality problem due to us. After 2 years, we will charge the
material and freight cost.
2. Free Training: You can send your engineers to our factory for
free of charge training, which includes the software, operation,
installation, adjustment, basic repairing, etc.
3. Technical Support: All operation manuals, software, CAD drawings
of the steel structure and instruction of installing the cabinets
can be provided for free. Online technical support by remote
control is also available. If needed, we can send engineers to your
country to instruct and help the installation.
4. If you need, we can send our engineer to guide the installation
for you. But the relevant cost should be paid by your company such
hotel, food, round trip ticket.
