Large Outdoor Energy Saving LED Billboard For Advertising Without
Air Conditioner
Energy Saving LED Billboard Features:

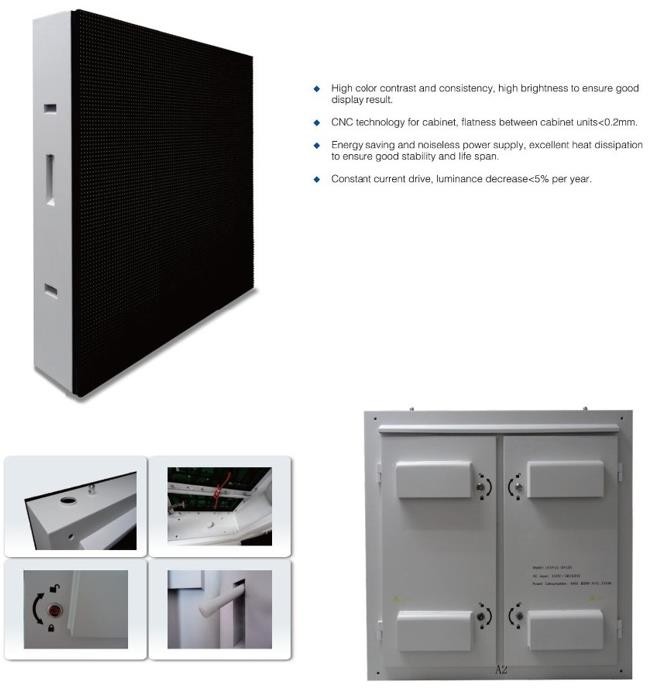

1. Front access, slim aluminum cabinet, easy and fast to install
and maintenance.
2. 2.8V&3.8V energy saving design, no need air-conditioner,
environmental and save cost.
3. Support 90 degree installation, seamless splicing at the corner.
4. Totally warterproof of front and back IP65.
5. Competitive price, you are welcome to contact us for a free
project evaluation.
6. Curved screen adjustable, creative design to meet your
requirement.
7. With Energy Saving technique, the power consumption reduce from
350W/Sqm to 150W/Sqm.
Model
P4
P5
P6
P8
P10
Pixel Pitch(mm)
4
5
6.67
8
10
LED Chips
SMD1921
SMD2525
SMD3535
SMD3535
SMD3535
Pixel density(dots/m2)
62500
40000
22477
15625
10000
Driving Method
1/10 scanning
1/8 scanning
1/6 scanning
1/5 scanning
1/2 scanning
Module Size(mm)
320*160
320*160
320*160
320*160
320*160
Module Resolution
80*40
64*32
48*24
40*20
32*16
Cabinet Size( W*L mm)
960*960
960*960
960*960
960*960
960*960
Cabinet Material
Magnesium
Alloy
Magnesium
Alloy
Magnesium
Alloy
Magnesium
Alloy
Magnesium
Alloy
Cabinet Weight( Kg/m2 )
35
35
35
35
35
Max.Consumption(W/m2)
800
800
800
800
800
Ave.Consumption(W/m2)
350
350
350
350
350
Brightness( Nits )
≥5500
≥5000
≥5500
≥5800
≥6000
Viewing Angle (Vertical / Horizontal)
120° / 120°
120° / 120°
120° / 120°
120° / 120°
120° / 120°
Refresh Rate
≥1920Hz
≥1920Hz
≥1920Hz
≥1920Hz
≥1920Hz
IP Level
IP65
IP65
IP65
IP65
IP65
Product Features:

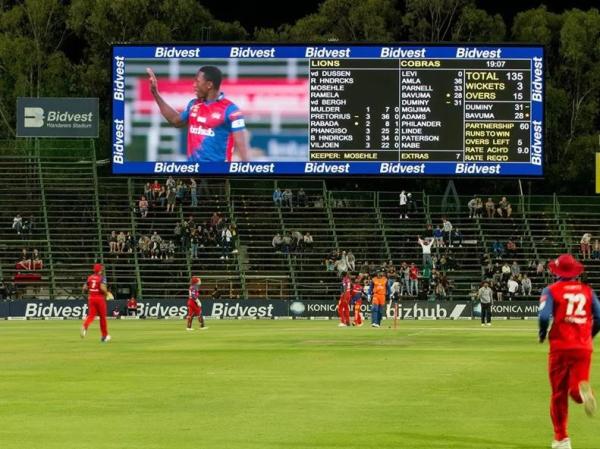

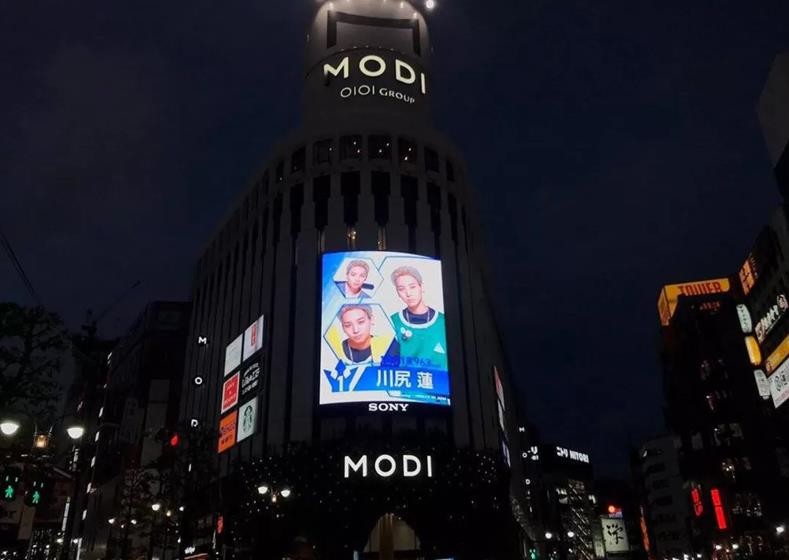

1. Wide application field & short ROI time: commercial advertising LED display screen, Stadium perimeter LED
display screen, Mobile trailer LED display screen for mobile media,
shopping mall LED display screen for logo showing, bank&stock
exchange LED display screen for rates showing, train & bus station
LED display screen, air port LED display screen, telecommunication
LED display screen system for information showing and instruction
2.High Contrast ratio:4000:1 Which is a very high level to ensure a vivid image of our LED
display screen system.
3. Clear vivid image quality: Even in direct, full-on sunlight to ensure you attract more
audience to get short ROI of your LED display screen's investment.
4. Long-term Brightness: 7000-nit brightness (for outdoor full color)(2000 nits brightness
for indoor full color ) capacity throughout product lifetime of the
LED display screen.
5. Easy Installation & Using: easy & simple installation interface and user friendly software to
ensure the user friendly interface of the LED display screen system
6. Convenient Servicing: Front and rear cabinet access makes the maintenance work very
convenient and low cost to help you concentrate more time and
energy on your main marketing promotion business.
About Us:
SHENZHEN ELITELED ELECTRONICS CO., LTD. is a leading LED display
applications products and solutions provider, specialized in LED
research and development, manufacturing. Sales and servic,
dedicated to providing high-quality, high-performance LED
applications and solutions for professional channel customers and
end-users at home and abroad.
Our products have been widely used both at home and abroad. Since
its foundation, we have become one of the best LED product and
solution providers in the country through our unremitting efforts
and have won the industry's highest recognition
The development of the company so far, the sales outlets throughout
the country, the export products exported to more than 10 countries
and regions, 3C, FCC, CE, IP65, IP67, IS9001, ROHS, and other
qualifications, product testing reports, patent certificate.
Shenzhen EliteLED Electronics Co., Ltd is a top LED display
manufacturer with 10 years rich experience providing 2 years
warranty. We concentrate on Outdoor & Indoor commercial LED
billboard, Rental LED screen, Sports LED display, LED Poster,
Transparent LED display, etc. Due to our best balance of quality &
price with strong reputation, our LED displays are exported to all
over the world. We are always honest, responsible and diligent.
Dedicated to professional, high efficient and caring features, our
experienced sales engineers listen to you, think more for you. In
addition, take good care of each detail of your order, packages and
shipping. We also welcome deep customized, OEM, ODM orders and
distributors application. We a trusted one-stop LED display
solution provider with more designs and more solutions. Our
partners are media advertising, audio, video & light, retail,
property, religion, sports, event, studio. Front service, double
sided, column, flex, curved, sphere, 90 degrees, any irregular
shaped LED display are available. Our corporate philosophy is to
maximize the value for our customers and to provide the best
service for our customers.
