P8mm Large Outdoor Led Display Screens 7000nits with Nova Control system

Ask Lasest Price
Brand Name :	EliteLED
Model Number :	P8
Certification :	CE, CCC
Price :	Negotiable
Supply Ability :	3000sqm/month
Delivery Time :	18 days

Add to Cart

Product Details
Company Profile

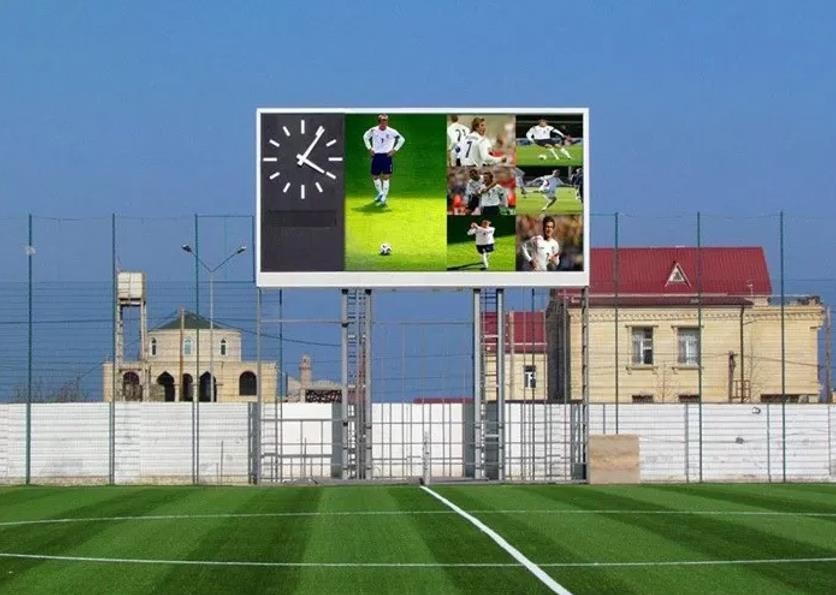

P8mm Large Outdoor Led Display Screens 7000nits with Nova Control system

Large Outdoor Led Dispaly Panel Energy Saving LED Billboard For Advertising

Energy Saving LED Billboard Features:

1. High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.

2. Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.

3. High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.

4. Good heat dissipation with fans and using meanwell power supply, long lifespan.

5. High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.

6. Curved screen adjustable, creative design to meet your requirement.

7. With Energy Saving technique, the power consumption reduce from 350W/Sqm to 150W/Sqm.

Model	P4	P5	P6	P8	P10
Pixel Pitch(mm)	4	5	6.67	8	10
LED Chips	SMD1921	SMD2525	SMD3535	SMD3535	SMD3535
Pixel density(dots/m2)	62500	40000	22477	15625	10000
Driving Method	1/10 scanning	1/8 scanning	1/6 scanning	1/5 scanning	1/2 scanning
Module Size(mm)	320*160	320*160	320*160	320*160	320*160
Module Resolution	80*40	64*32	48*24	40*20	32*16
Cabinet Size( W*L mm)	960*960	960*960	960*960	960*960	960*960
Cabinet Material	Magnesium Alloy	Magnesium Alloy	Magnesium Alloy	Magnesium Alloy	Magnesium Alloy
Cabinet Weight( Kg/m2 )	35	35	35	35	35
Max.Consumption(W/m2)	800	800	800	800	800
Ave.Consumption(W/m2)	350	350	350	350	350
Brightness( Nits )	≥5500	≥5000	≥5500	≥5800	≥6000
Viewing Angle (Vertical / Horizontal)	120° / 120°	120° / 120°	120° / 120°	120° / 120°	120° / 120°
Refresh Rate	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz
IP Level	IP65	IP65	IP65	IP65	IP65

P8mm Large Outdoor Led Display Screens 7000nits with Nova Control system

About Us:

SHENZHEN ELITELED ELECTRONICS CO., LTD. is a leading LED display applications products and solutions provider, specialized in LED research and development, manufacturing. Sales and servic, dedicated to providing high-quality, high-performance LED applications and solutions for professional channel customers and end-users at home and abroad.

Our products have been widely used both at home and abroad. Since its foundation, we have become one of the best LED product and solution providers in the country through our unremitting efforts and have won the industry's highest recognition

The development of the company so far, the sales outlets throughout the country, the export products exported to more than 10 countries and regions, 3C, FCC, CE, IP65, IP67, IS9001, ROHS, and other qualifications, product testing reports, patent certificate.

Our Service:

1. What about the warranty?

We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.

2. How about the quality?

Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.

3. Can you offer a technical support? Since it's my first time....

We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. We're happy to serve you. If any question, you are welcome to contact us!
