P4.8mm Wall Mounted Led Display

Ask Lasest Price
Brand Name :	EliteLED
Model Number :	Outdoor p4.8
Certification :	CE
Price :	Negotiable
Supply Ability :	3000sqm/month
Delivery Time :	25 days

Add to Cart

Product Details
Company Profile

P4.8mm Wall Mounted Led Display

Wall Mounted Outdoor P4.8 Energy Saving Led Display Commercial Advertising Board

Specifictions:

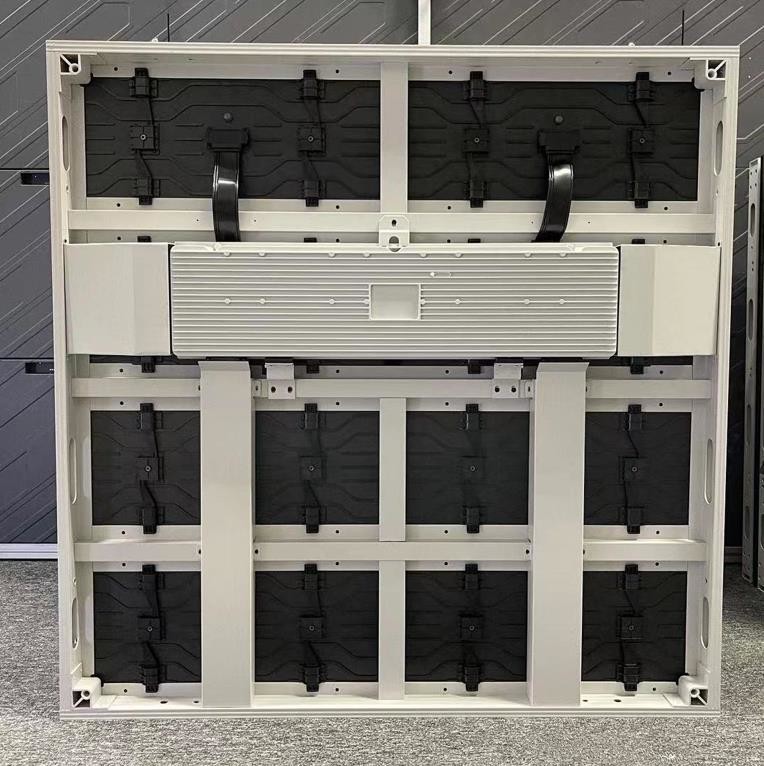

1. Front access, slim aluminum cabinet, easy and fast to install and maintenance.

2. 2.8V&3.8V energy saving design, no need air-conditioner, environmental and save cost.

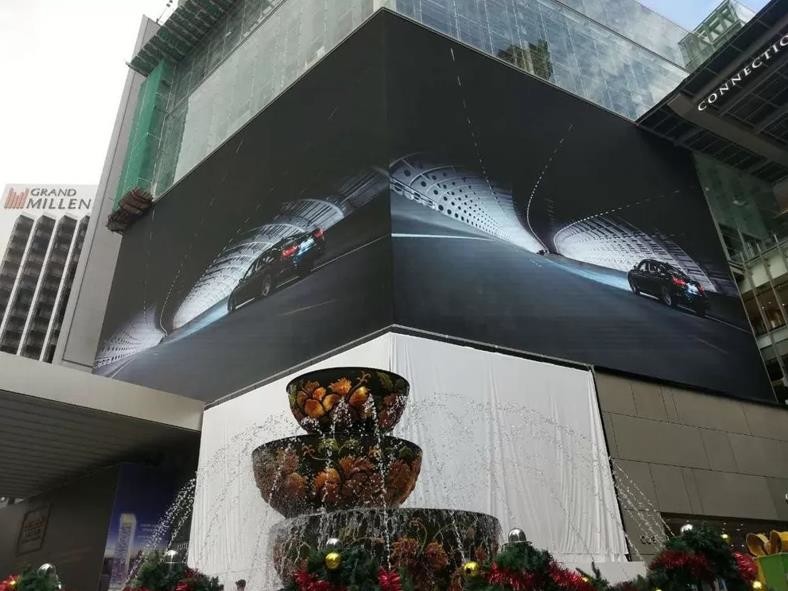

3. Support 90 degree installation, seamless splicing at the corner.

4. Totally warterproof of front and back IP67 and IP65.

5. Competitive price, you are welcome to contact us for a free project evaluation.

Model No.	P10.41	P7.8	P6.25	P5.2	P4.8	P3.9
Pixel pitch	10.4mm	7.82mm	6.25mm	5.2mm	4.81mm	3.91mm
Pixel density (dots/m2)	9246	16352	25600	36982	43264	65536
LED encapsulation	SMD3535	SMD2727	SMD2727	SMD2727	SMD1921	SMD1921
Scan rate	1/2 scan	1/4 scan	1/5 scan	1/6 scan	1/7 scan	1/8 scan
Module size	500 x 250 mm
Module Resolution	48 x 24	64 x 32	80 x 40	96 x 48	104 x 52	128 x 64
Cabinet size	1000 x 1000 x 73mm (Optional)
Cabinet Resolution	96 x 96	128 x 128	160 x 160	192 x 192	208 x 208	256 x 256
Weight per Cabinet	24.5 kg
Brightness	≥6500/ 10000nits	≥6000/ 10000nits	≥6000/ 10000nits	≥5500/ 10000nits	≥5000/ 10000nits	≥5000/ 10000nits
Max.power consumption	500W	500W	500W	550W	800W	800W
Ave.power consumption	175W	175W	175W	185W	270W	270W
Energy Saving design	2.8V & 3.8V Low voltage				4.6V / 5V voltage
Protection Degree	Front IP67/Rear IP65
Service	Front & Rear Dual service
Power Supply	AC120 /240V (50Hz) (optional)
Refresh Rate	≥ 1920Hz(3840Hz Optional)

P4.8mm Wall Mounted Led Display

About Us:

EliteLED has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.

Product Features:

1. High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.

2. Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.

3. High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.

4. Good heat dissipation with fans and using meanwell power supply, long lifespan.

5. High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.

6. Curved screen adjustable, creative design to meet your requirement.

7. With Energy Saving technique, the power consumption reduce from 350W/Sqm to 150W/Sqm
