Indoor Big Led Video Wall 3840Hz Refresh For High End Event
Exhibition
Indoor Rental LED Display Product Description:
LED video walls have grown exponentially in popularity in recent
years and have greatly decreased in price. Eliteled uses the best
quality led display solutions. Our LED walls can be used in many
different applications indoors, outdoors, wall mounted.
Product advantages:
1. Providing excellent customer service and technical support.
2. We have very strict quality control system for every production
procedure.
3. We introduced advanced technology equipment, we can delivery
products on time, no matter samples or customized products.
4. We have experienced technology enginners team and sales team to
answer and solve all your concerned matters.
5. Our products passed CE, FCC and RoHS certificates.
6. The best price. You are welcome to contact us for a free project
evaluation.
Technical Specifications:
| Item | Parameter |
| Module specifications | Mode | P2.604 | P2.97 | P3.91 | P3.91 |
| Module size | 250*250 | 250*250 | 250*250 | 250*250 |
| Module pixel | 96*96 | 84*84 | 64*64 | 64*64 |
| Scan | 1/32 | 1/28 | 1/16 | 1/16 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Max power consumption (W/piece) | 40W | 40W | 40W | 40W |
| Mask | Have | Have | Have | Have |
| Main Specifications | Cabinet size | 500*500 | 500*500 | 500*500 | 500*1000 |
| Cabinet pixel | 192*192 | 168*168 | 128*128 | 128*256 |
| Density (dot/m2) | 147456 | 112896 | 65536 | 65536 |
| Brightness(cd/m2) | 500-1000 | 500-1000 | 500-1000 | 500-1000 |
| Max power consumption (W/piece) | 160W | 160W | 160W | 320W |
| Avg power consumption (W/piece) | 50W | 50W | 50W | 100W |
| Cabinet weight(KG) | 7.5KG | 7.5KG | 7.5KG | 13.6KG |
| Cabinet material | Die-cast aluminum |
| IP grade | IP45 | IP45 | IP45 | IP45 |
| Gray level | 16 bit | 16 bit | 16 bit | 16 bit |
| Fresh rate | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
| Best viewing distance | 3M | 3M | 4M | 4M |
| Power(V) | AC110-220V |
| Working temperature | -20℃-50℃ |
Features:
1. Light weight: The aluminum die-casting technology we adopt is about 7.5kg which
is convenient for assembly and disassembly
2. Hight refresh rate: Over 3840Hz refresh rate to ensure the picture
wrinkle-less,line-less and stable.
3. Low brightness and High gray scale:14Bit-16Bit gray scale to bring excellent performance when
brightness is reduced to 25%.
4. Easy to install: Don't need to worry about the installation, it is easy, because of
the design of the Die casting cabinet, Just like building block
5. High IP: The IP65 insures the reliable operation in different enrionment,
and it is more safe
6. Low brightness and Hight gray scale:14Bit-16Bit gray scale to bring perfect display performance with no
shadows
About Us:
EliteLED is the professional manufacturer of HD LED Video walls,
outdoor, indoor LED Display Screen, LED Panel in Shenzhen, China
with led display exported to more than 100 countries and regions,
passed CE ,ROHS FCC Certifications. If you are considering LED go
with the known leader of LED display suppliers, please contact us.
FAQ:
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Outdoor P3.91mm
Q2: Where is it used for?

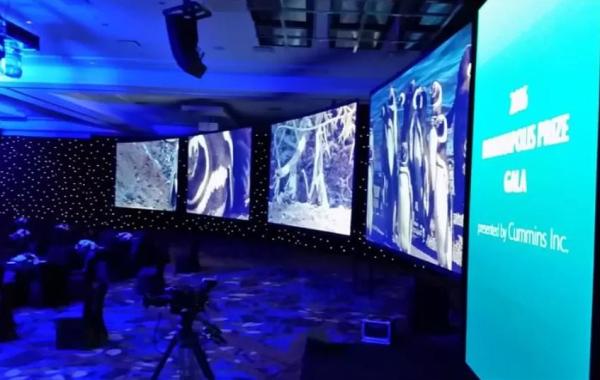

A2: Indoor rental use. Widely used for backdrop of staging event,
rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling
system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar.
Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We
will offer the suitable solution for your project size. I will
appreciate it if any drawing files about installation offered.
